Panelix Atlas 10

Panelix Atlas 10

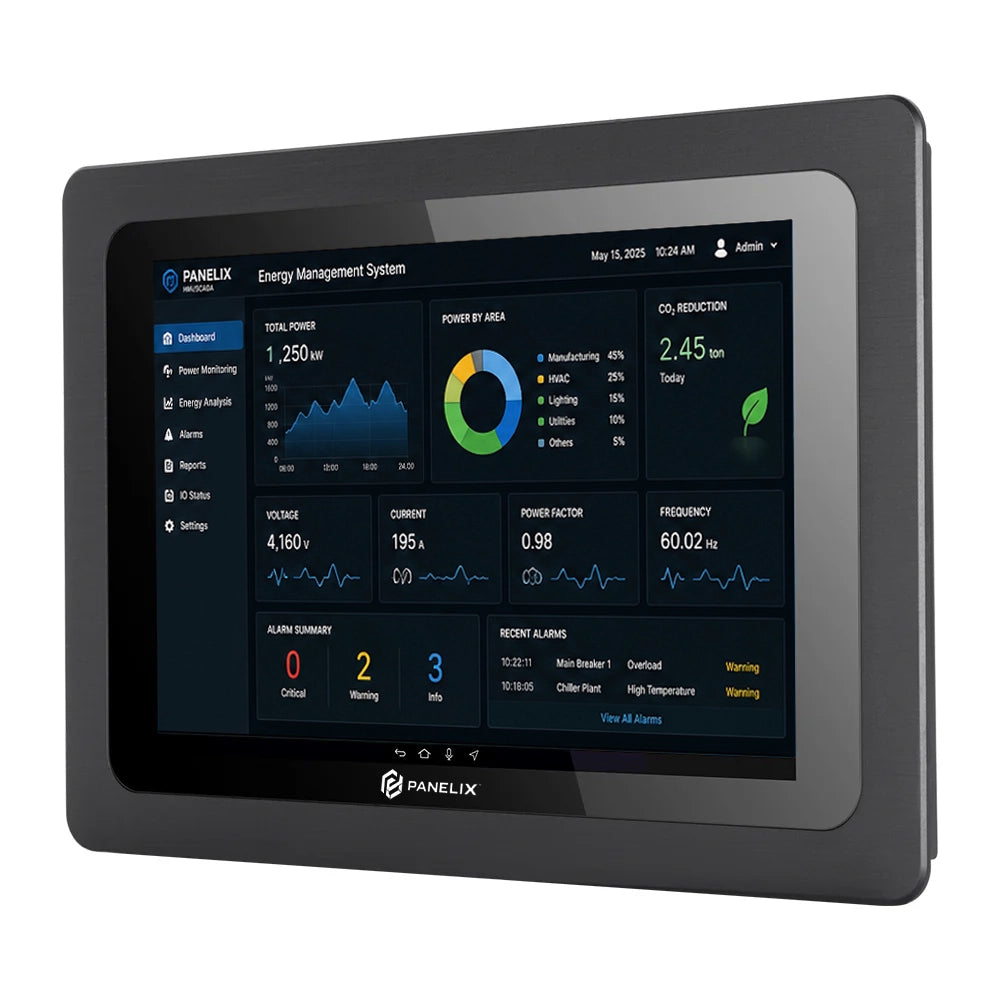

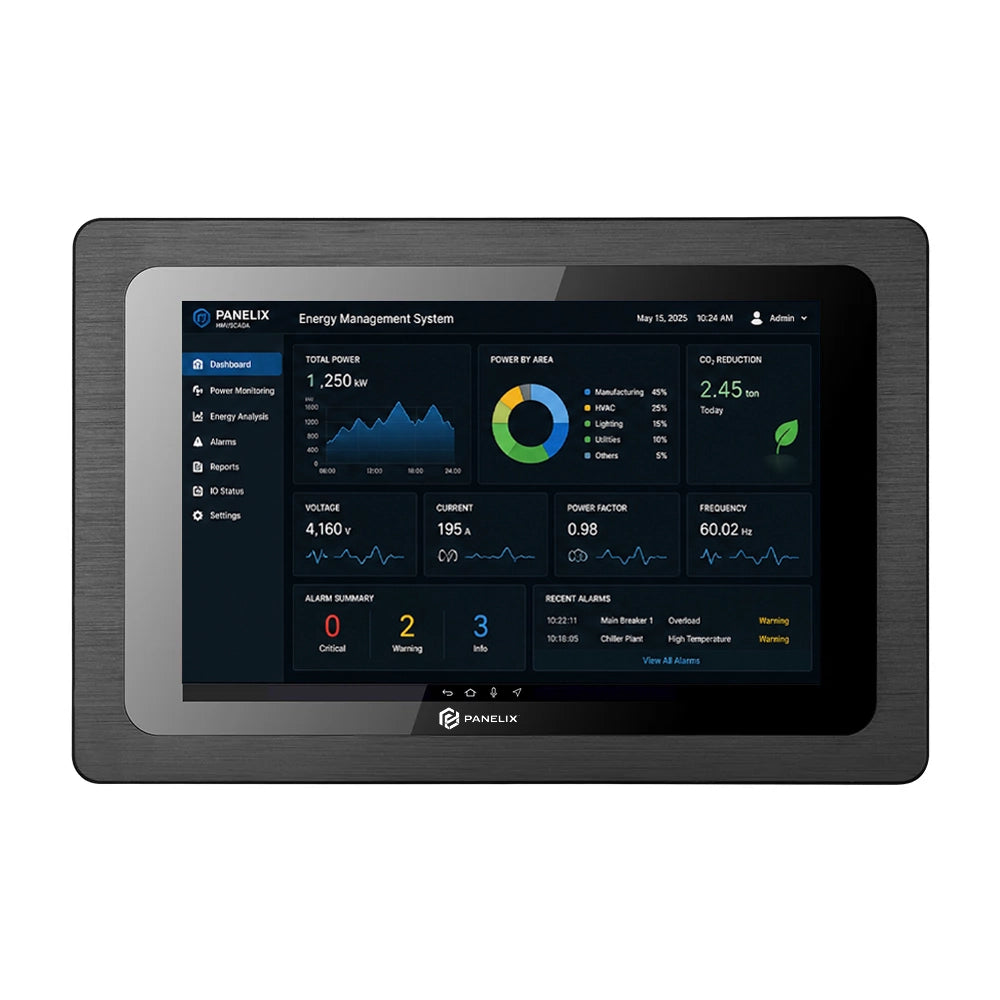

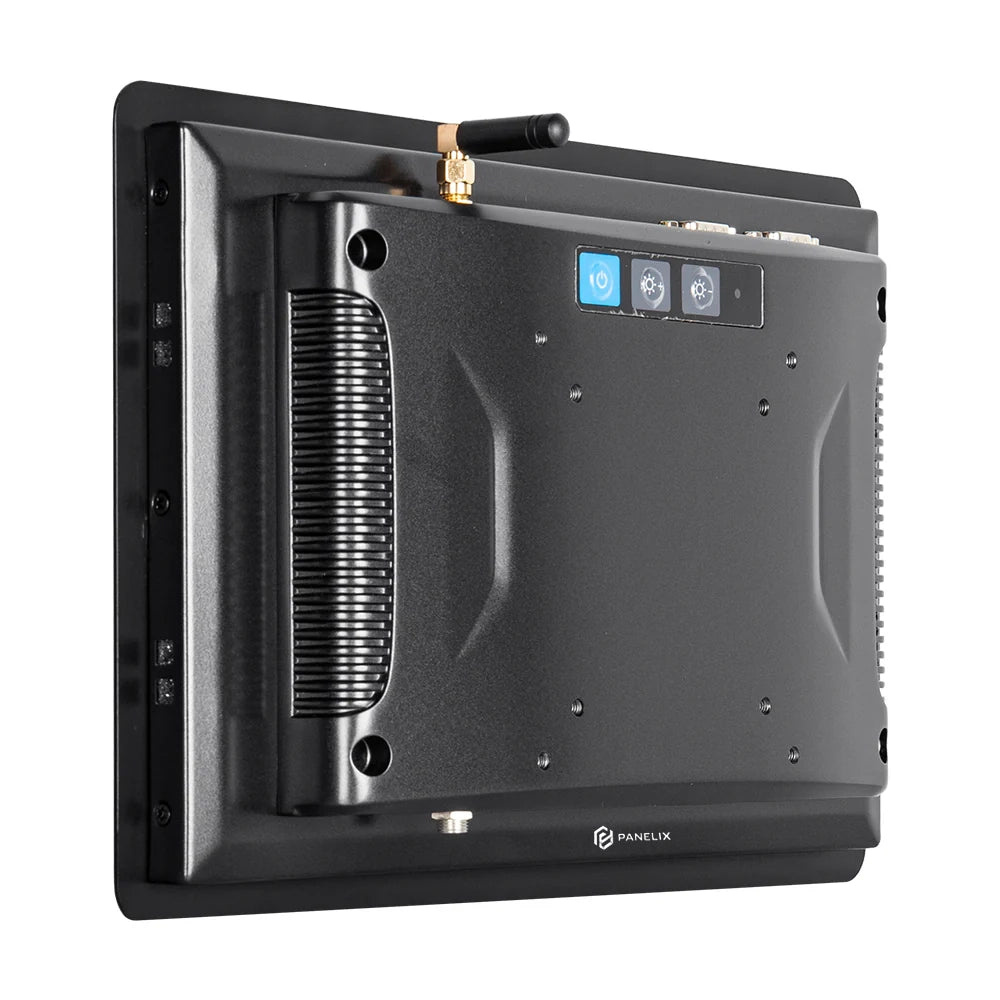

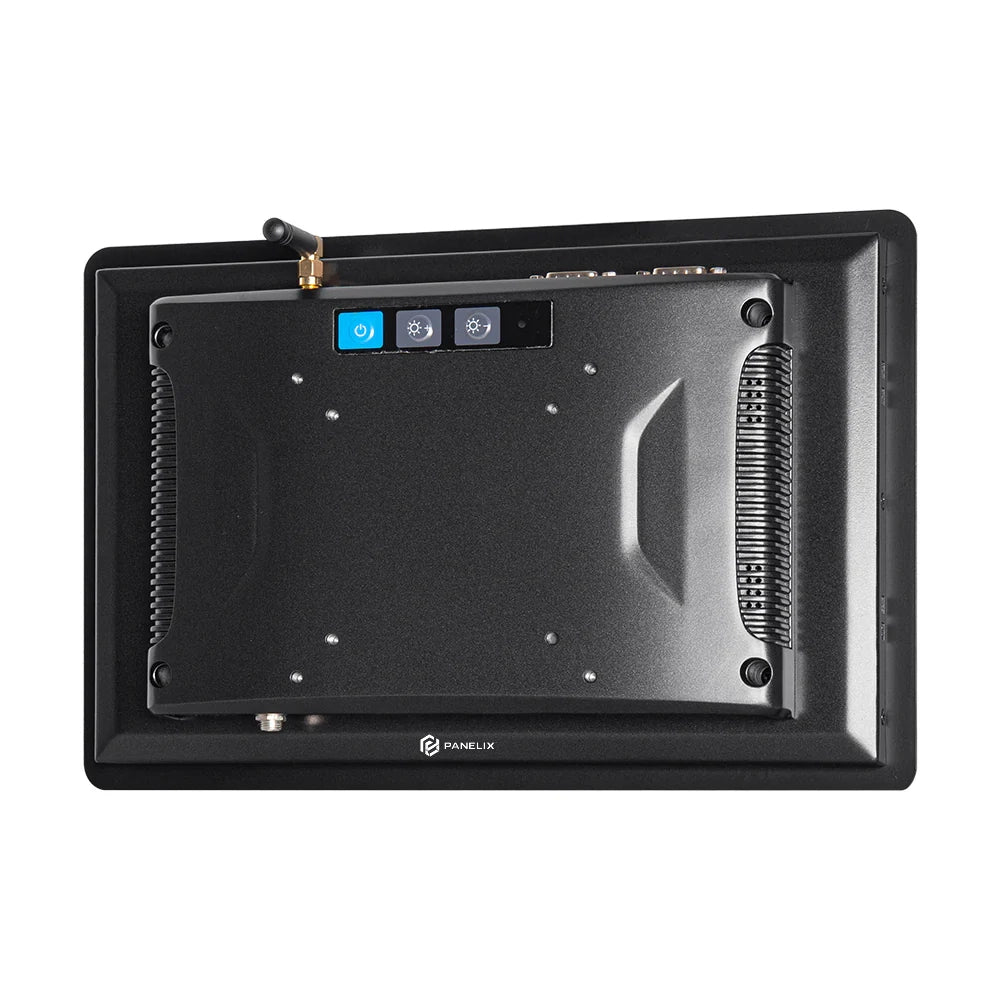

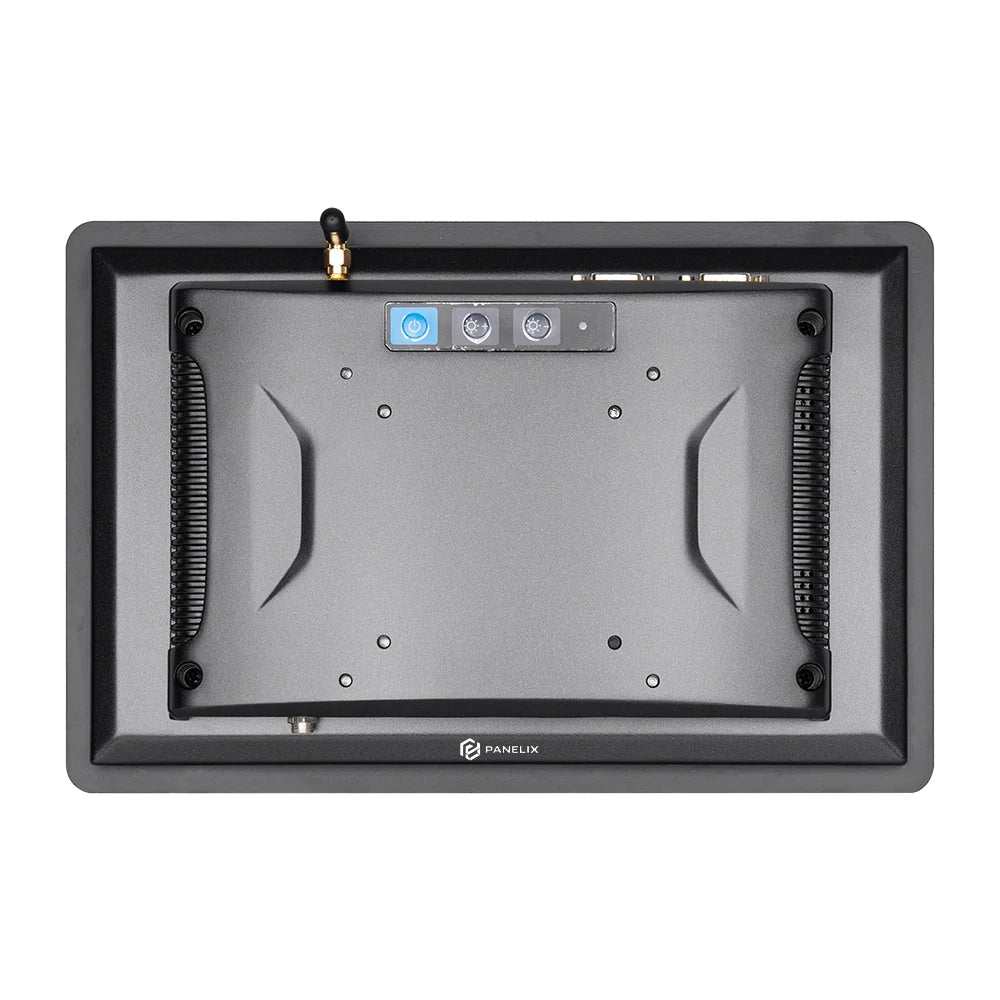

10.1" Intel i5-8265U capacitive panel PC

SKU: PX-101X-i5-8265U-PCAP
Capacitive Touch

Capacitive Touch

Intel J6412

Intel J6412

Windows / Intel Panel PC

Windows / Intel Panel PC

Request Quote Download Datasheet

Product Specifications

Screen Parameter

Size

10.1"

Configuration

J6412(8G + 256G)

Resolution

1280 x 800

Configuration

CPU

Intel® Celeron® J6412 Quad - Core 2.0GHz CPU

Memory/RAM

8GB (Optional: 4GB / 16GB, Supports up to 16GB)

Storage

256GB SSD (Optional: 128GB – 512GB / 1 – 4TB SSD, 1TB / 2TB HDD)

Wi-Fi

Dual Band 2.4GHz + 5GHz

Operating System

Windows 10 / 11, Ubuntu 14.04.6 / 16.04.7 / 18.04.5 / 18.04.6 / 20.04.1 / 20.04.3 / 20.04.4 / 22.04, CentOS 7.8 / 8.4 / 7.9, Red Hat 7.4, Debian 10.0 / 11.6

Bluetooth

BT4.0

Watchdog Timer

Support

RTC real-time clock

Support

Timer Switch

Support

Physical Characteristic

Overall Dimensions

W420X H269X D70MM

Installation Size

W403X H252mm

Material

Aluminum alloy

Color

Black, optional silver

Installation

Supports panel mount, wall - embedded, wall - mounted, desktop, folding mount, VESA mount, suspended mount, etc.

Power Parameter

Power Input

DC 12V - 36V

Power Adapter

24V / 2.5A

Interface Parameter

Power SW

1 x Power SW Power interface, 1 x Threaded DC

Power Interface

1 x Threaded DC connector (Diameter 5.5 x 2.5mm)

Phoenix Terminal

1 x 12 - Pin Phoenix Terminal (DC, RS - 232 x 1, RS-485 x 1, GPIO x 5)

USB

2 x USB2.0, 2 x USB3.0

Ethernet

2 x LAN, 10 / 100 / 1000 Mbps Adaptive Ethernet, 3G / 4G customized

HDMI

1 x HDMI output, up to 4K

SIM

1 x SIM card slot (should be work with 3G / 4G module)

VGA

1 x VGA

Audio

1 x Audio I / O, support audio input and output

Serial Port

1 x COM (The default is RS232, optional RS485 / RS422)

Wi-Fi Antenna

2 x Wi - Fi antenna

Grounding

1 x GND

Speaker

2 x (8Ω2W)

Reliability Parameter

Operating Temperature

- 10°C ~ 60°C (- 20°C ~ 70°C can be customized)

Storage Temperature

- 20°C ~ 70°C

Relative Humidity

95% non - condensing

Target Industries

  • Manufacturing
    Manufacturing
  • Warehousing
    Warehousing
  • Logistics
    Logistics
  • Machine Builders
    Machine Builders
  • Packaging
    Packaging

Where To Use

Compact machine interfaces, OEM equipment, small operator panels, embedded stations.

How It Is Used

Mount on equipment, panel, wall, or workstation and run Windowscompatible business or industrial software.
