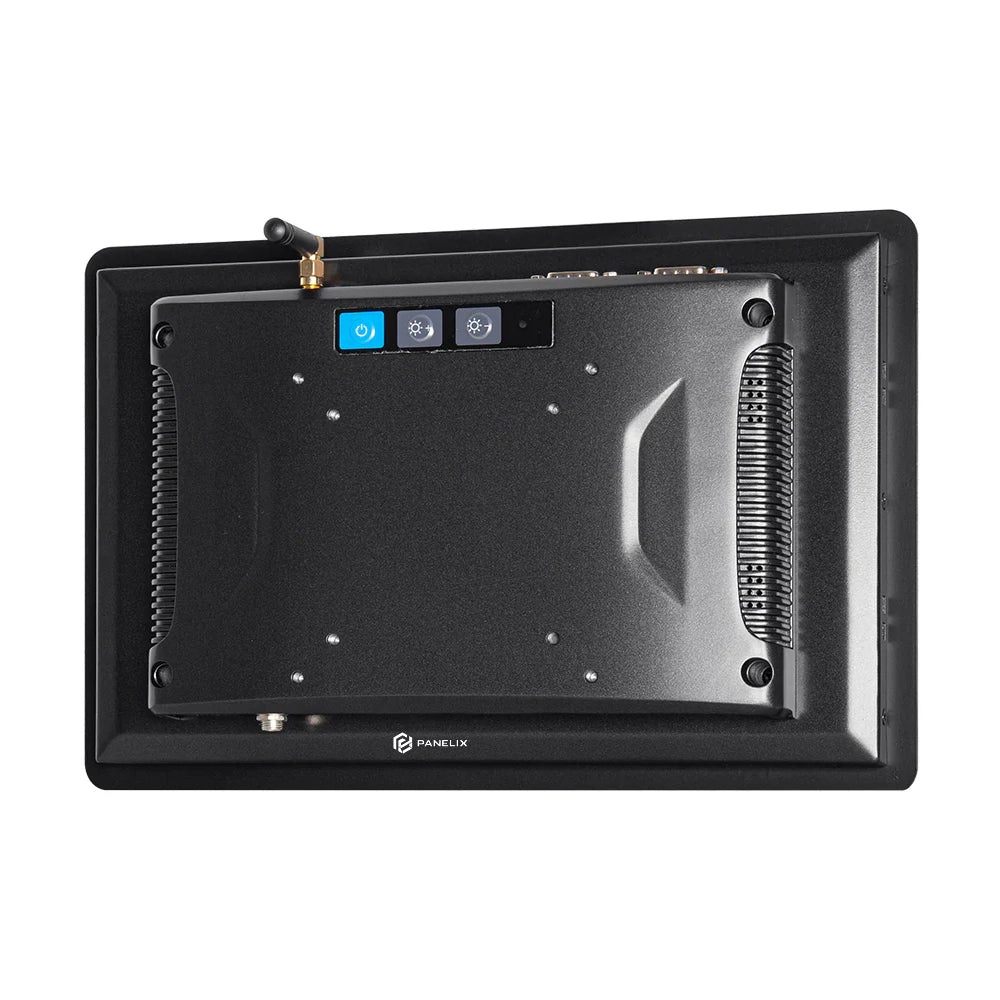

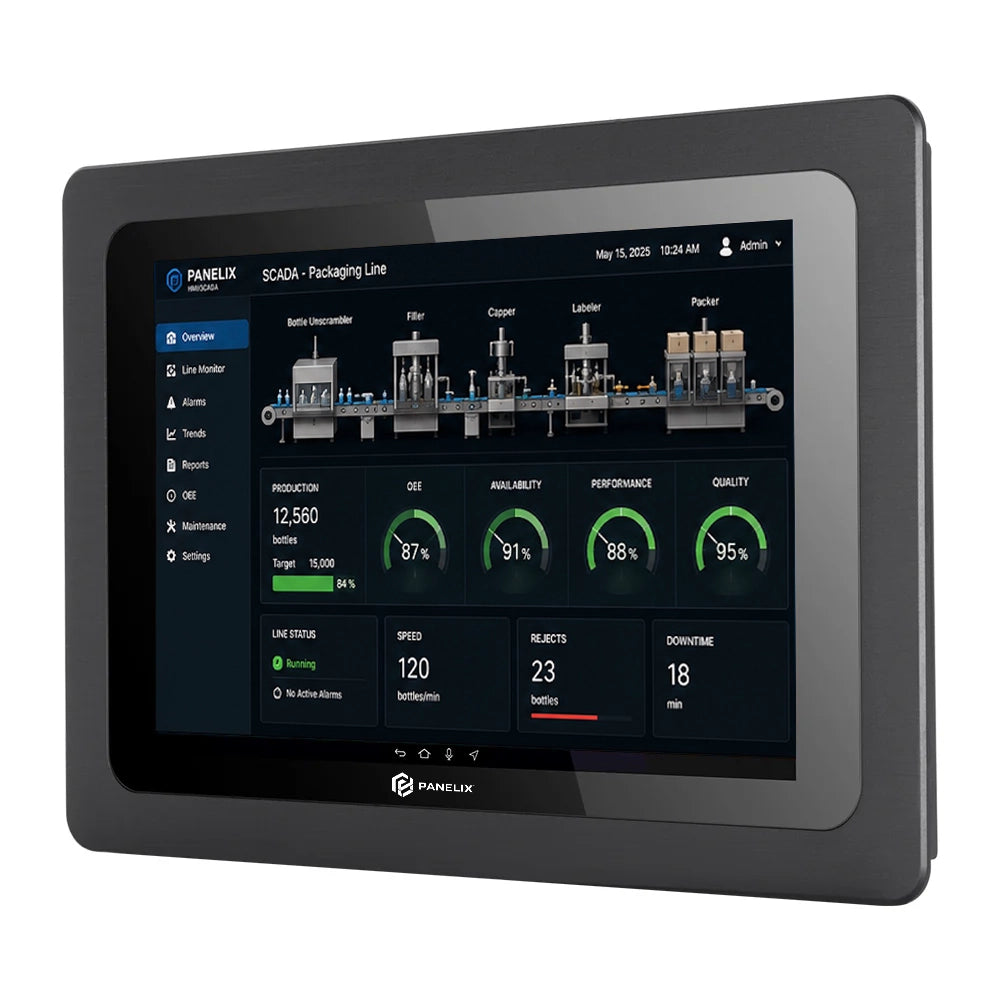

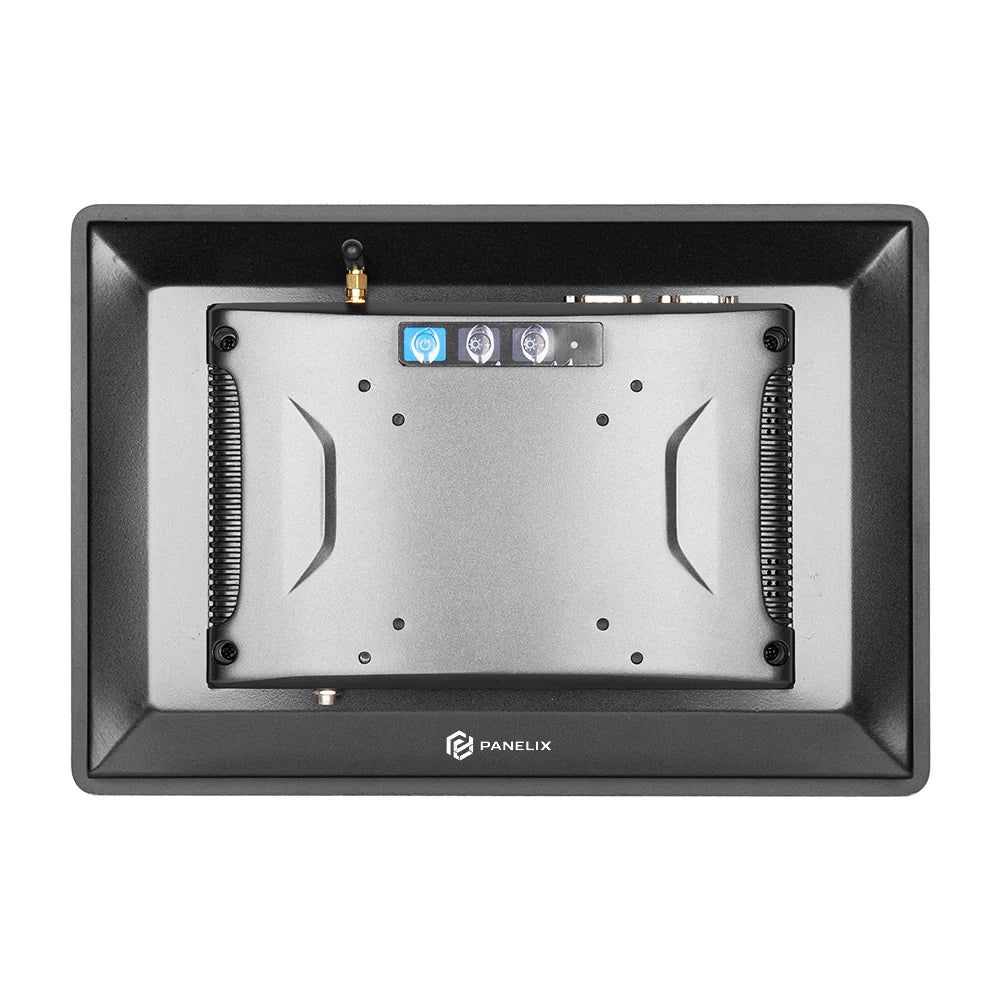

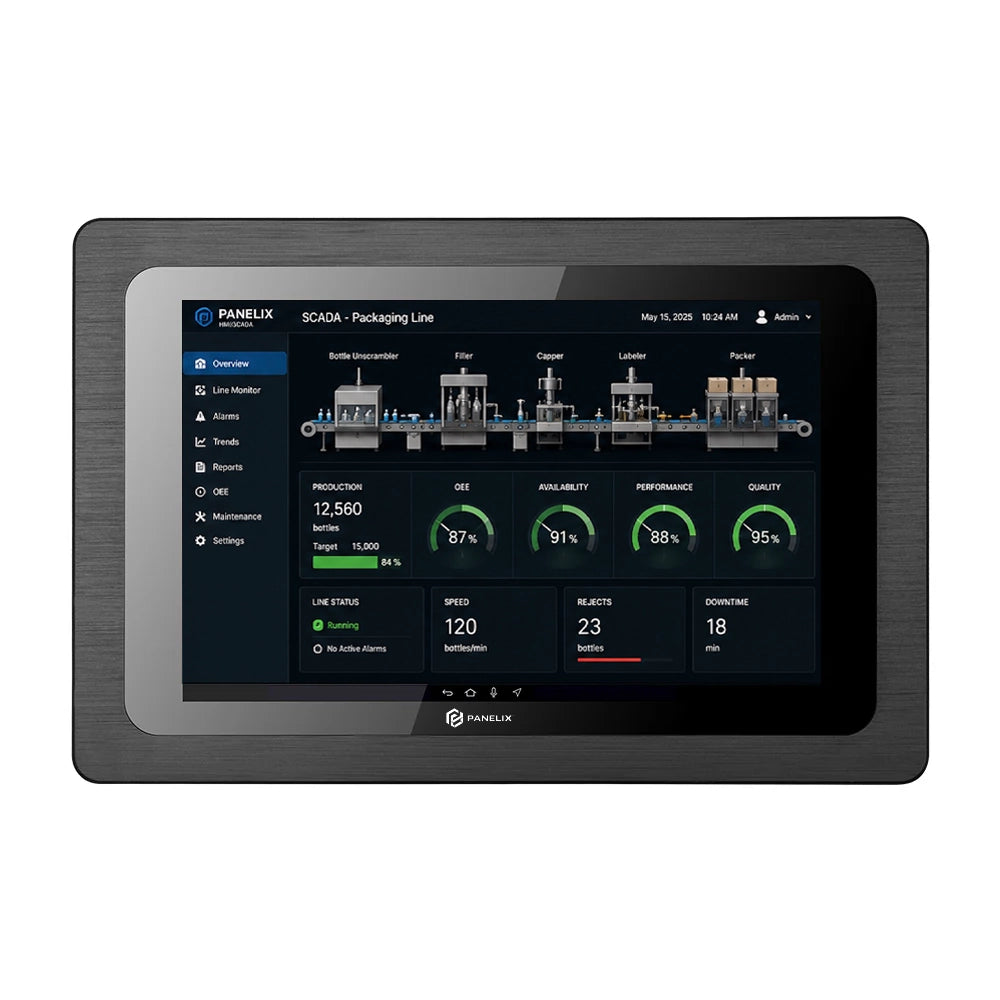

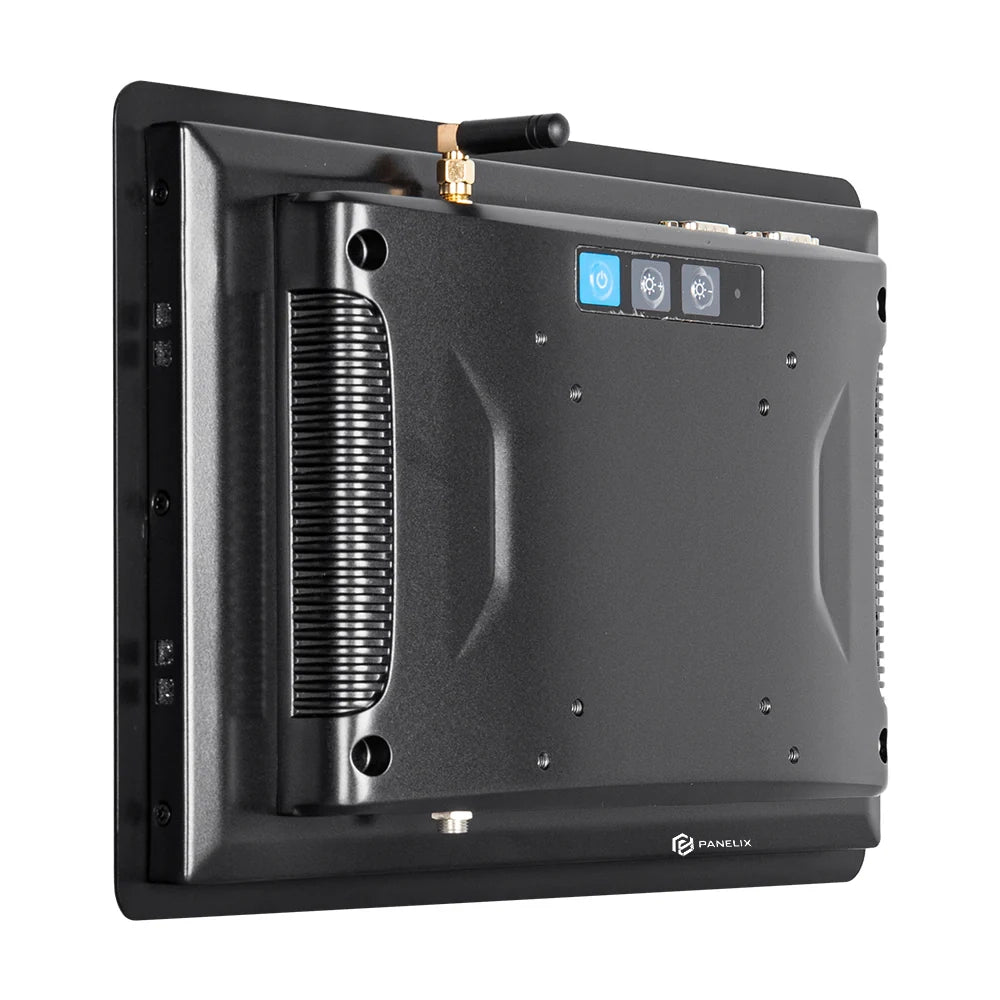

Panelix Atlas 16

Panelix Atlas 16

15.6" Intel i5-8265U capacitive panel PC

SKU: PX-156X-i5-8265U-PCAP
Capacitive Touch

Capacitive Touch

Intel i5-8265U

Intel i5-8265U

Windows / Intel Panel PC

Windows / Intel Panel PC

Request Quote Download Datasheet

Product Specifications

Screen Parameter

Display Type

15.6" TFT LCD Screen

MAX Resolution

1920 x 1080 (16:9）

Viewing Angle(H/V)

85/85/85/85 (L/R/U/D)

Luminance (cd/m²)

300 cd/m²

Contrast Ratio

800:1

Configuration

CPU

I5-6200U, I5-7200U, I5-8265U, I5-10210U

CPU Frequency

2.3GHz, 2.5GHz, 1.6GHz

Integrated Graphics

Intel Iris Graphics 520, Intel HD Graphics 620, Intel UHD Graphics 620

Memory/RAM

4GB DDR4(Optional 8GB/16GB/32GB), 4GB DDR4(Optional 8GB/16GB/32GB/64GB), 8GB DDR4(Optional 16GB/32GB/64GB)

Storage

128GB SSD (Optional 256GB~512GB/1T~4T SSD, 1T/2T HDD)

Wi-Fi

Dual Band 2.4GHz + 5GHz

Bluetooth

BT4.0

Operating System

Win7 / 10 / 11, Ubuntu / CentOS / Redhat / Debian / Linux

Watchdog Timer

Support

RTC real-time clock

Support

Timer Switch

Support

Physical Characteristic

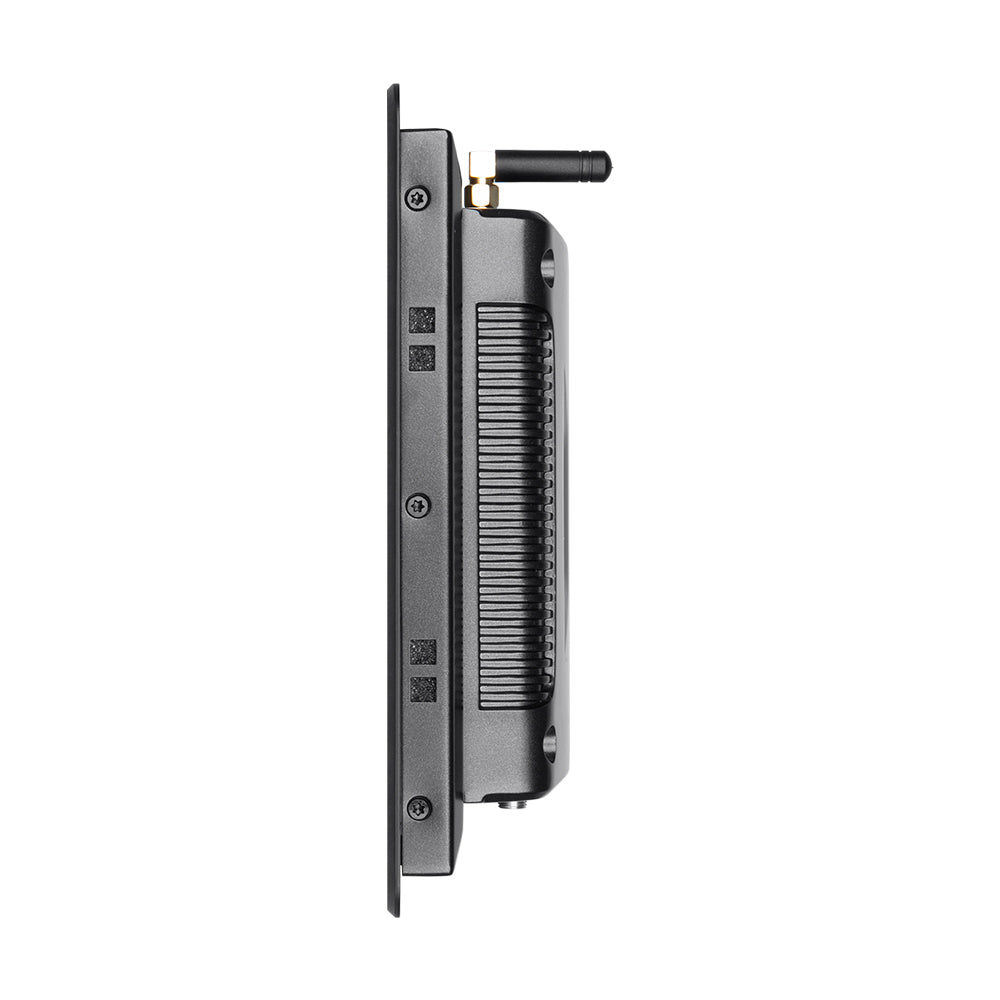

Overall Dimensions

W420 x H269 x D70mm

Installation Size

W403 x H252mm

Color

Black, optional silver

Installation

Supports panel mount, wall - embedded, wall - mounted, desktop, folding mount, VESA mount, suspended mount, etc.

Power Parameter

Power Input

DC 12V - 36V

Power Adapter

6200U / 7200U: 24V / 2.5A, 8265U / 10210U: 24V / 4A

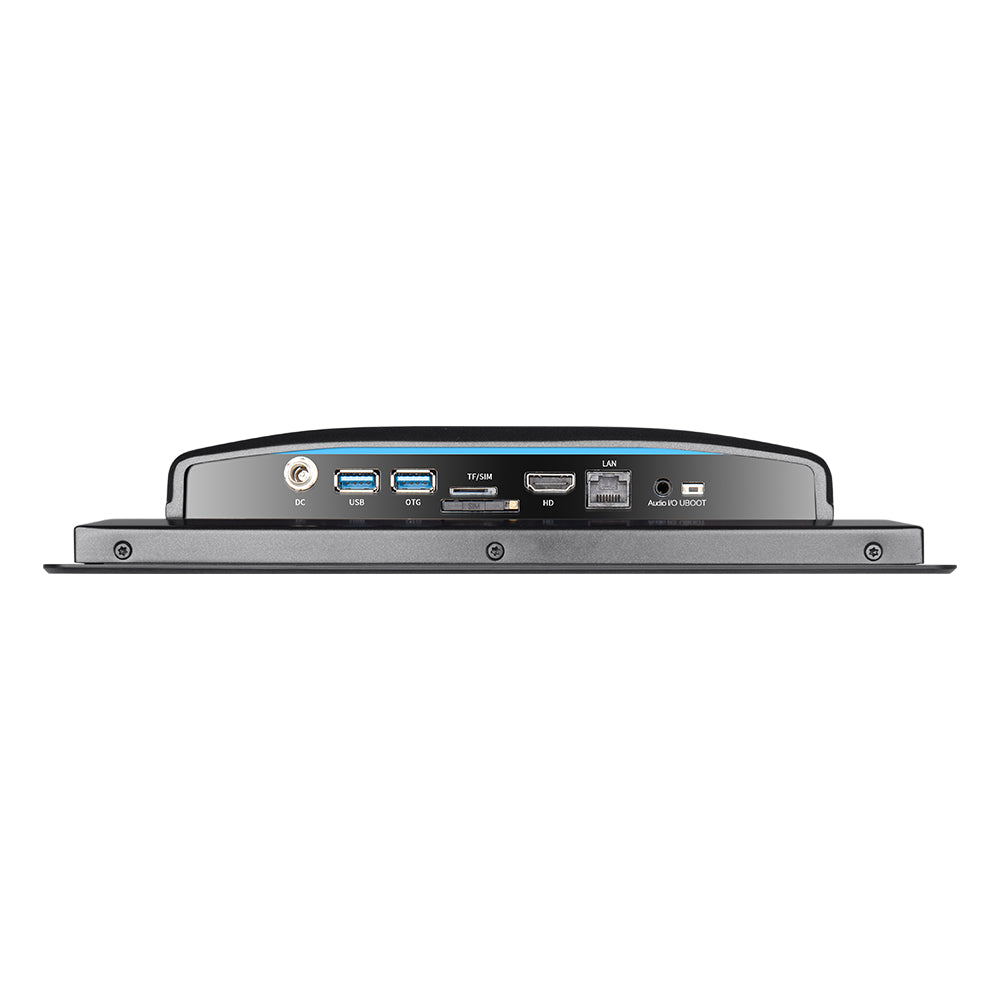

Interface Parameter

Power SW

1 x Power SW

Power Interface

1 x Threaded DC port (Diameter: 5.5 x 2.5mm)

Phoenix Terminal

1 x 6P Phoenix terminal (1 x 232 with power supply + 1 x DC)

USB

2 x USB2.0, 2 x USB3.0

Ethernet

2 x LAN, 10 / 100 / 1000 Mbps Adaptive Ethernet, 3G / 4G customized

HDMI

1 x HDMI output, up to 4K

SIM

1 x SIM card slot (should be work with 3G / 4G module)

VGA

1 x VGA

Audio

1 x Audio Out, support audio output

Wi-Fi Antenna

2 x Wi - Fi antenna

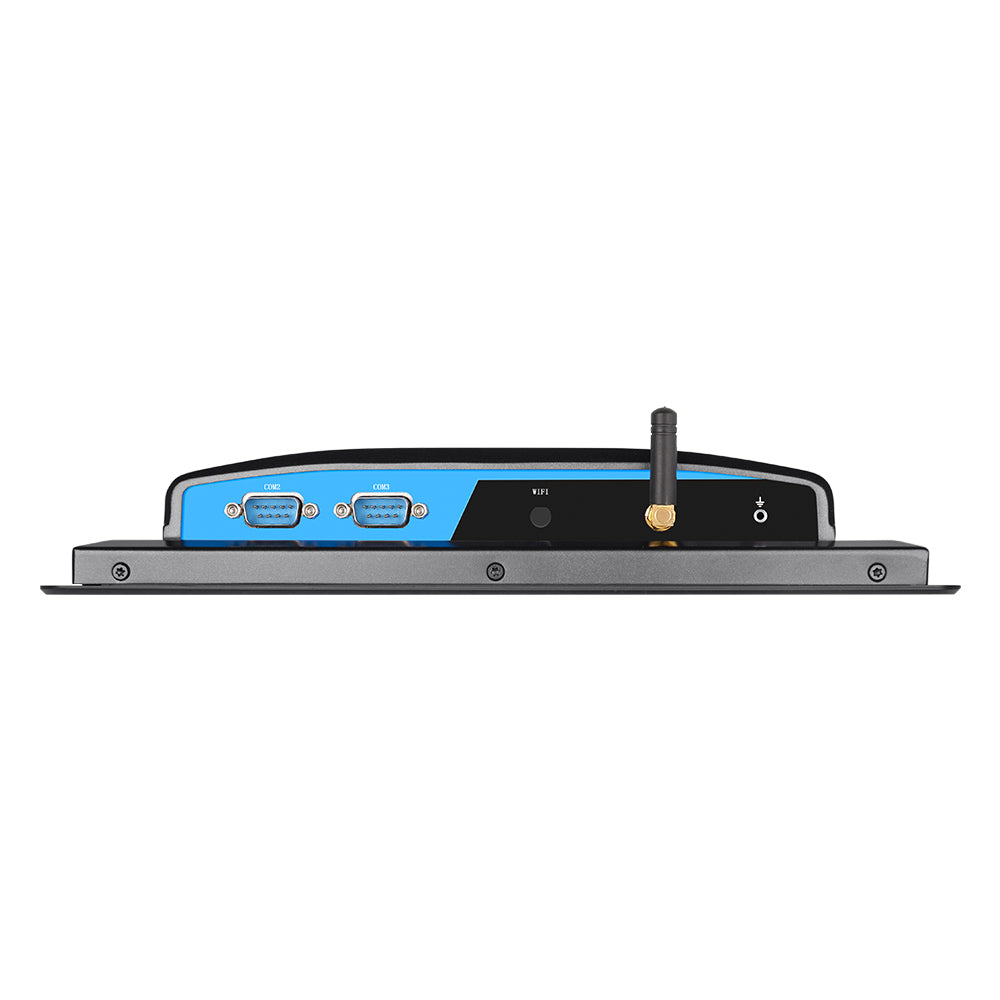

Serial Port

2 x COM (The default is RS232, optional RS485 / RS422)

Speaker

2 x (8Ω2W)

Grounding

1 x GND

Reliability Parameter

Operating Temperature

- 10°C ~ 60°C (-20°C ~ 70°C can be customized)

Storage Temperature

- 20°C ~ 70°C

Relative Humidity

95% non - condensing

Target Industries

  • Manufacturing
    Manufacturing
  • Warehousing
    Warehousing
  • Logistics
    Logistics
  • Machine Builders
    Machine Builders
  • Packaging
    Packaging

Where To Use

Compact machine interfaces, OEM equipment, small operator panels, embedded stations.

How It Is Used

Mount on equipment, panel, wall, or workstation and run Windowscompatible business or industrial software.

Tell us your application and we will recommend the right Panelix configuration.
