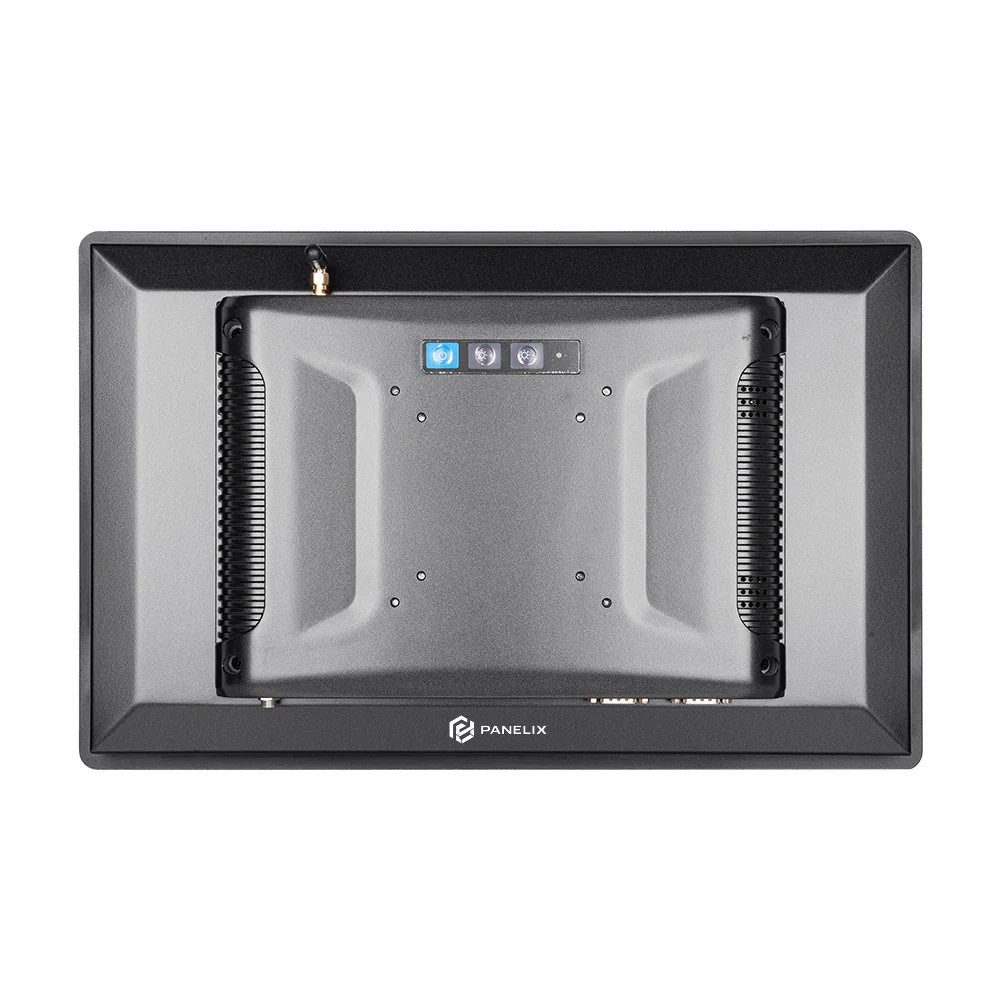

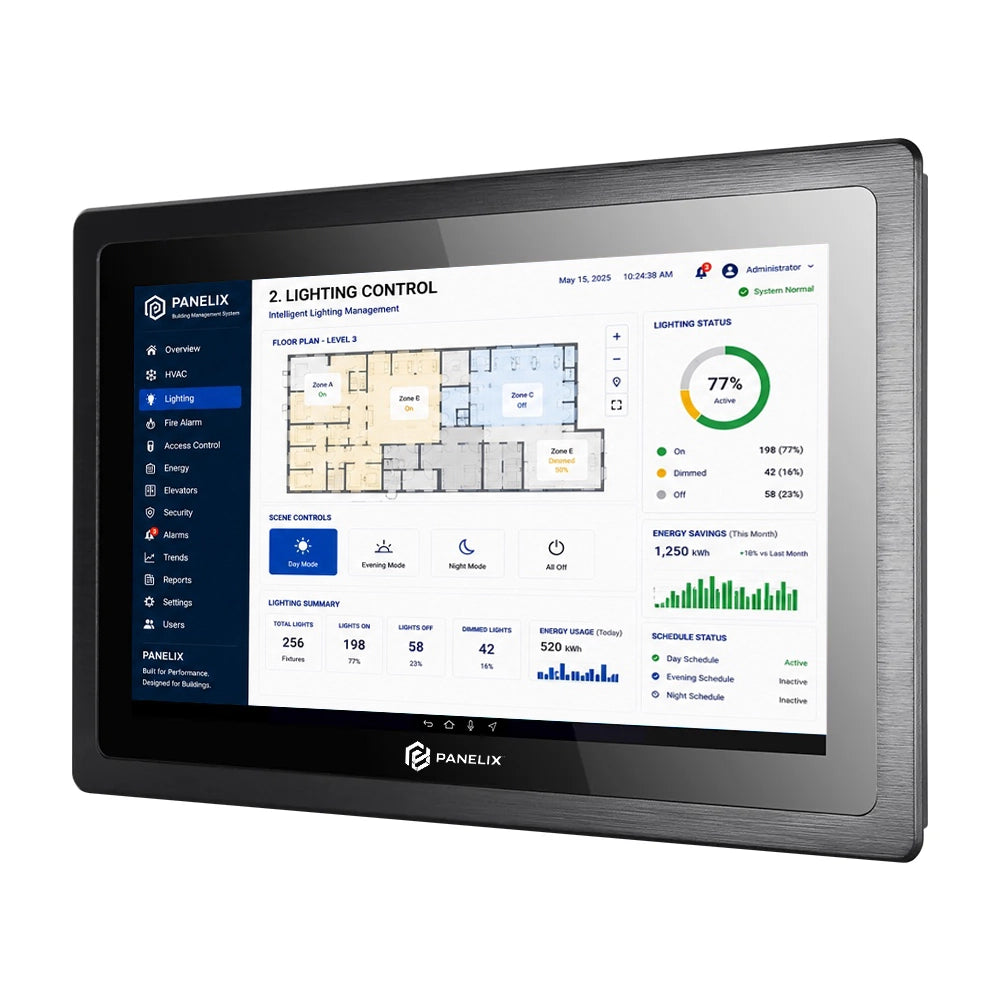

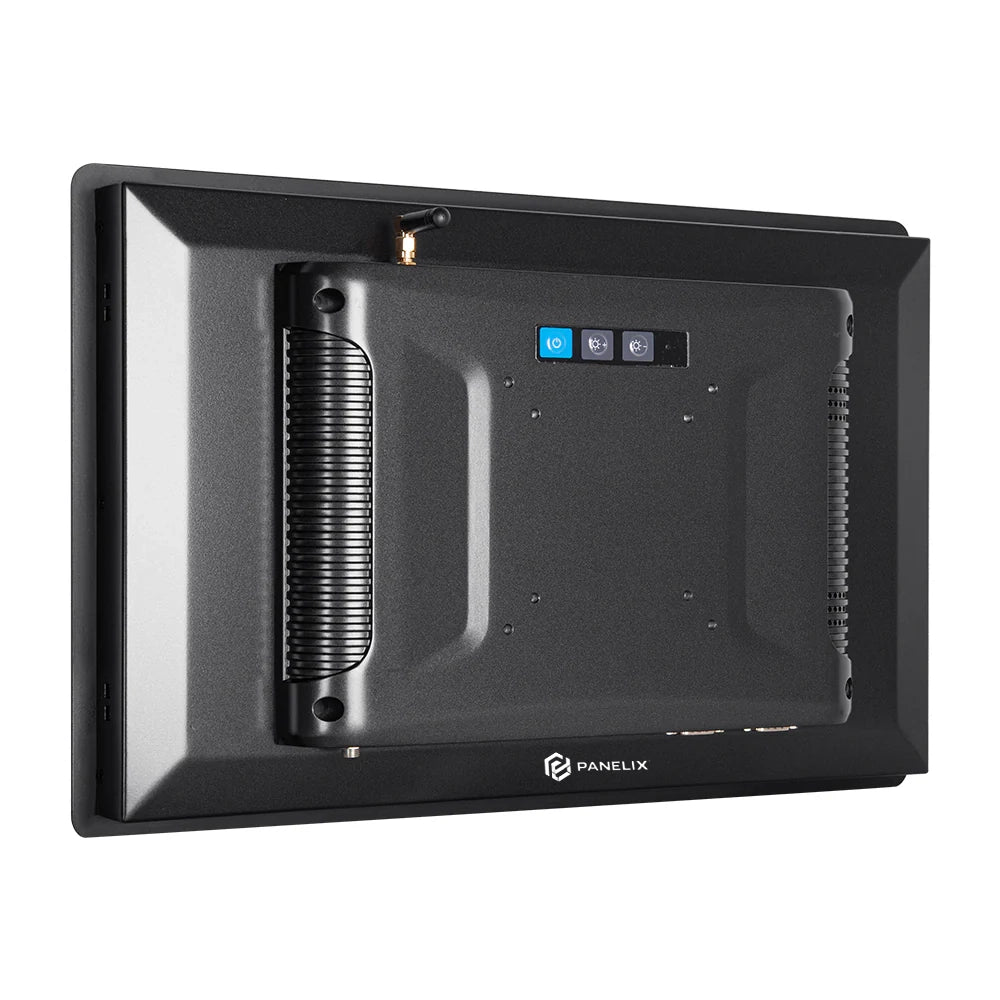

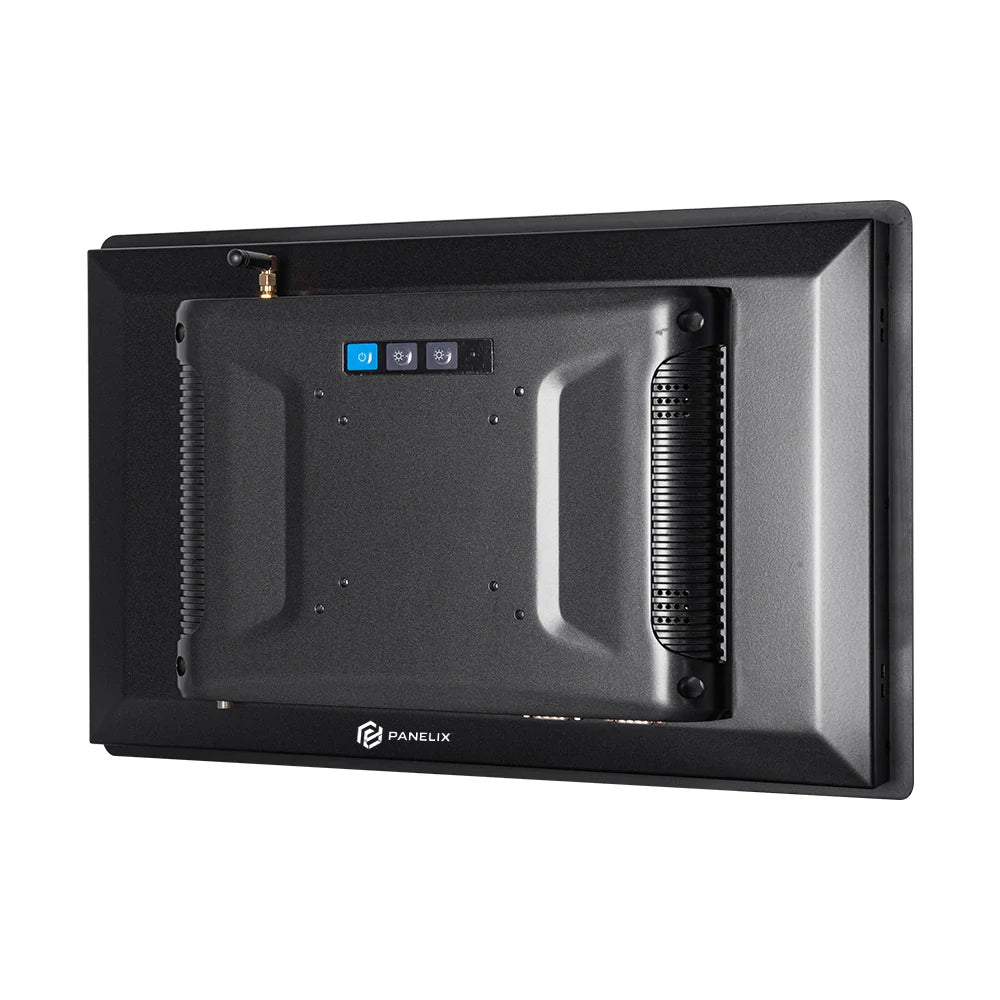

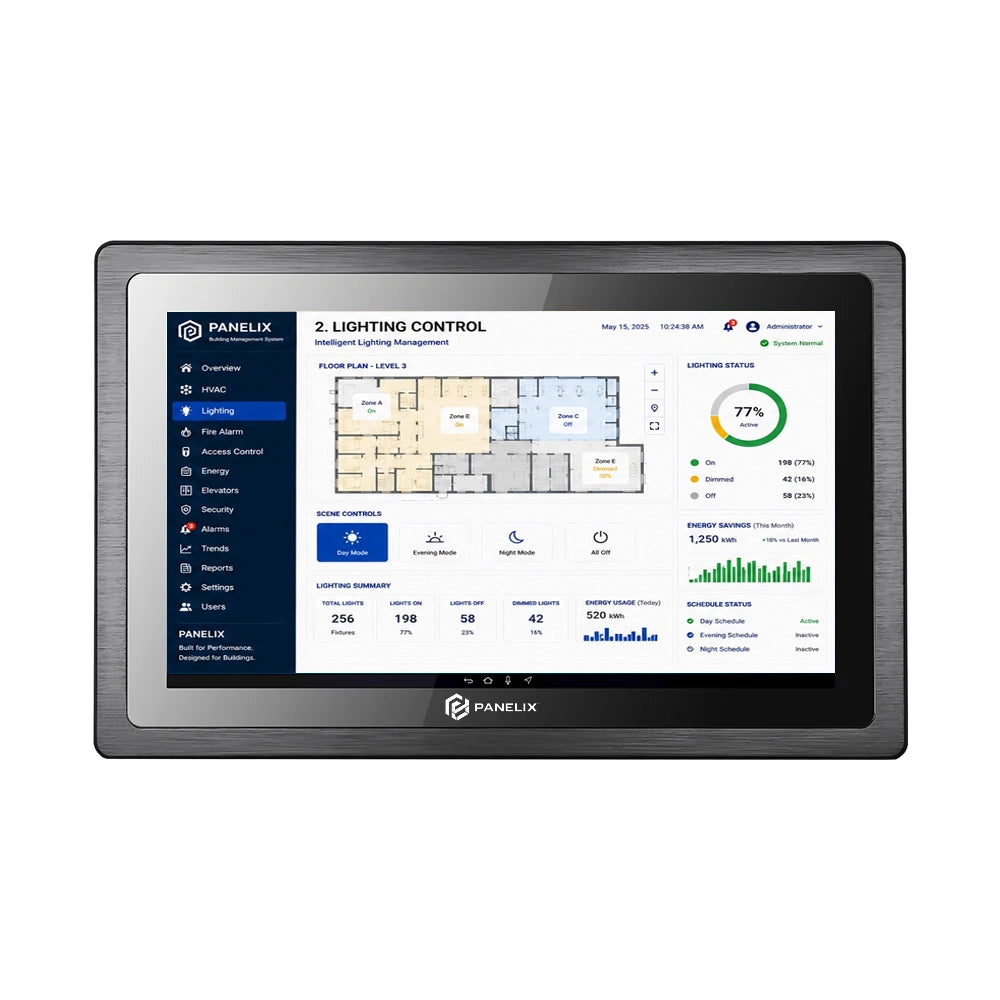

Panelix Edge 16

Panelix Edge 16

15.6" RK3588 AI edge capacitive panel PC

SKU: PX-156A-RK3588-PCAP
Capacitive Touch

Capacitive Touch

Android / ARM Panel PC

Android / ARM Panel PC

Request Quote Download Datasheet

Product Specifications

Screen Parameter

Display Type

15.6" TFT LCD screen

MAX Resolution

1920 x 1080 (16:9）

Viewing Angle(H/V)

85/85/85/85 (L/R/U/D)

Luminance (cd/m²)

300 cd/m²

Contrast Ratio

800:1

Configuration

CPU

RK3588 2.4 GHz, Quad-Core Cortex-A76 + Quad-Core Cortex-A55

Memory

8GB (Optional 4GB / 16GB / 32GB)

Storage

64GB eMMC (Optional 128GB / 256GB)

NPU

Built-in NPU with 6 TOPSAI computing power

Operating System

Android 13.0, Linux5.10 / Ubuntu20.04 / Ubuntu22.04 / Debian11

Wi-Fi

Wi-Fi 6, Dual Band 2.4GHz + 5GHz

Bluetooth

BT5.0

Watchdog Timer

Support

RTC real-time clock

Support

Timer Switch

Support

Physical Characteristic

Overall Dimensions

W420 x H269 x D70mm

Installation Size

W403 x H252mm

Material

Aluminum Alloy

Color

Black, optional silver

Installation

Supports panel mount, wall - embedded, wall - mounted, desktop, folding mount, VESA mount, suspended mount, etc.

Power Parameter

Power Input

DC 12V - 36V

Power Adapter

24V/2.5A

Interface Parameter

Power SW

1 x Power SW

Power Interface

1 x Threaded DC port (Diameter: 5.5 x 2.5mm)

Phoenix Terminal

1 x 6P Phoenix terminal (1 x 232 with power supply + 1 x DC)

USB

2 x USB2.0, 2 x USB3.0

TF

1 x TF card standard interface

SIM

1 x SIM card slot (should be work with 3G / 4G module)

HDMI

1 x HDMI output, up to 4K

Ethernet

2 x LAN, 10 / 100 / 1000 Mbps Adaptive Ethernet, 3G / 4G customized

Audio

1 x Audio I / O, Support audio input and output

Serial Port

1 x COM (The default is RS232, optional RS485 / RS422)

UBOOT

1 x UBOOT

Wi-Fi Antenna

1 x Wi - Fi antenna

Grounding

1 x GND

Speaker

2 x (8Ω2W)

Reliability Parameter

Operating Temperature

- 10°C ~ 60°C (-20°C ~ 70°C can be customized)

Storage Temperature

- 20°C ~ 70°C

Relative Humidity

95% non-condensing

Target Industries

  • Manufacturing
    Manufacturing
  • Warehousing
    Warehousing
  • Logistics
    Logistics
  • Food Processing
    Food Processing
  • Packaging
    Packaging

Where To Use

Production lines, warehouse operations, food processing, packaging, supervisory stations.

How It Is Used

Use as a Windows touchscreen workstation for industrial software and daily operations.
