Panelix Monix 16

Panelix Monix 16

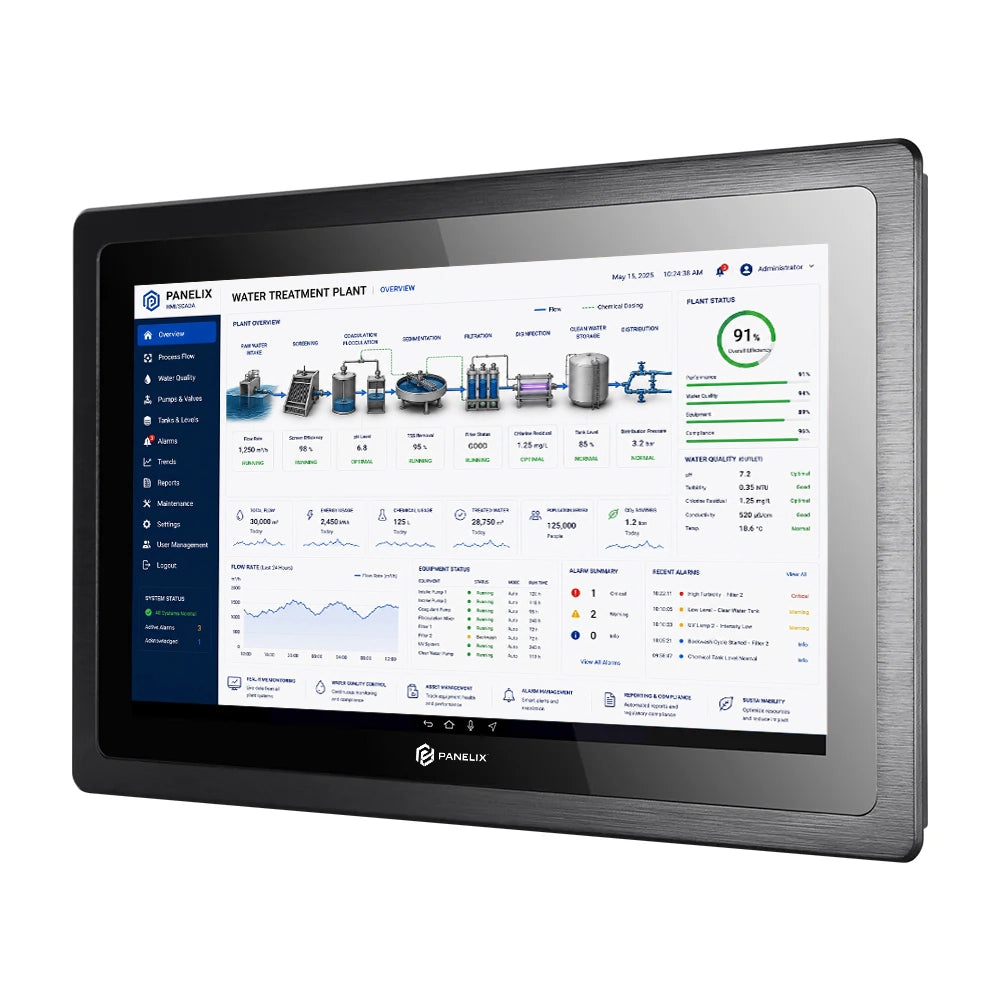

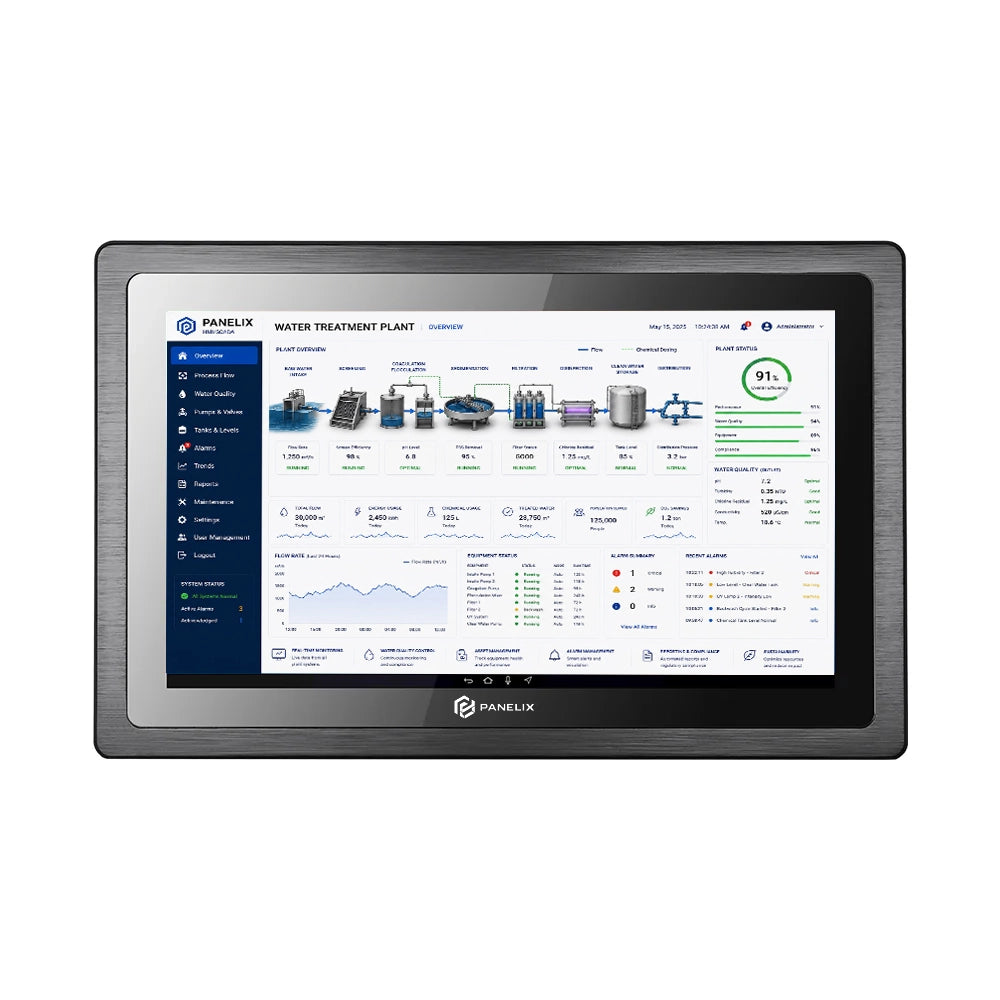

15.6" capacitive industrial monitor

SKU: MX-156-PCAP
Capacitive Touch

Capacitive Touch

Industrial Touch Monitor

Industrial Touch Monitor

Request Quote Download Datasheet

Product Specifications

Screen Parameter

Display Type

15.6" TFT LCD

MAX Resolution

1920 x 1080(16:9)

Viewing Angle(H/V)

85/85/85/85 (L/R/U/D)

Luminance (cd/m²)

300 cd/m²

Contrast Ratio

800:1

Configuration

CPU

RTD2556

Key Function

AUTO / MENU / POWER / LEFT / RIGHT

System language

Multilingual (default: English)

Video Input

PC-RGB:Format Upto 1920 x 1080@60HZ Color 16bit / 24bit / 32bit

Physical Characteristic

Overall Dimensions

W420 x H269 x D70mm

Installation Size

W403 x H252mm

Material

Aluminum Alloy

Color

Black, optional silver

Installation

Supports panel mount, wall - embedded, wall - mounted, desktop, folding mount, VESA mount, suspended mount, etc.

Power Parameter

Power Input

DC 12V - 36V

Power Adapter

24V/1.5A

Interface Parameter

Grounding

1 x GND

Power Interface

1 x Threaded DC connector (Diameter 5.5 x 2.1mm)

HDMI

1 x HDMI, Support HDMI data input, With a maximum of 1080P

Touch Interface

1 x TOUCH（RJ45)

VGA

1 x VGA

DVI

1 x DVI

Audio

1 x Audio I / O, Support audio input and output

Reliability Parameter

Operating Temperature

- 10°C ~ 60°C (-20°C ~ 70°C can be customized)

Storage Temperature

- 20 °C ~ 70°C

Relative Humidity

95% non-condensing

Target Industries

  • Manufacturing
    Manufacturing
  • Warehousing
    Warehousing
  • Logistics
    Logistics
  • Food Processing
    Food Processing
  • Packaging
    Packaging

Where To Use

Production lines, warehouse operations, food processing, packaging, supervisory stations.

How It Is Used

Use as a Windows touchscreen workstation for industrial software and daily operations.

Tell us your application and we will recommend the right Panelix configuration.

Request a quote
