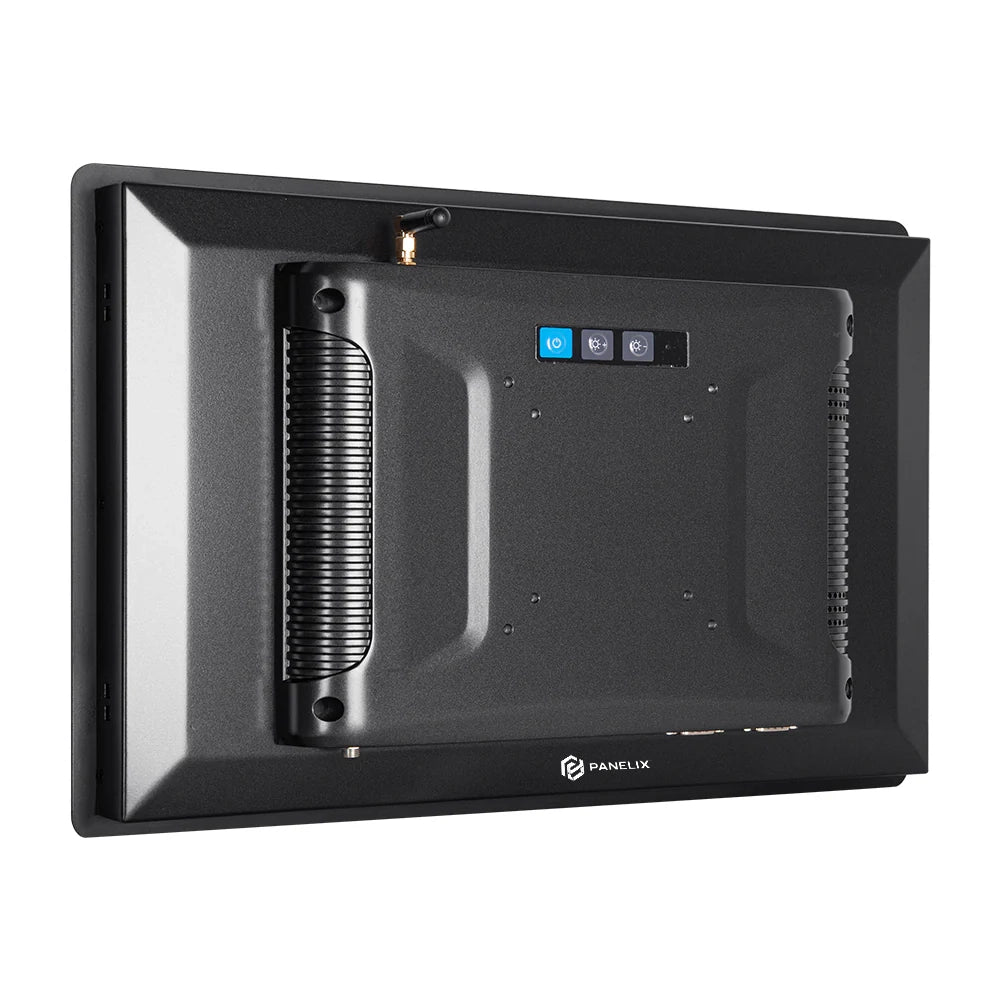

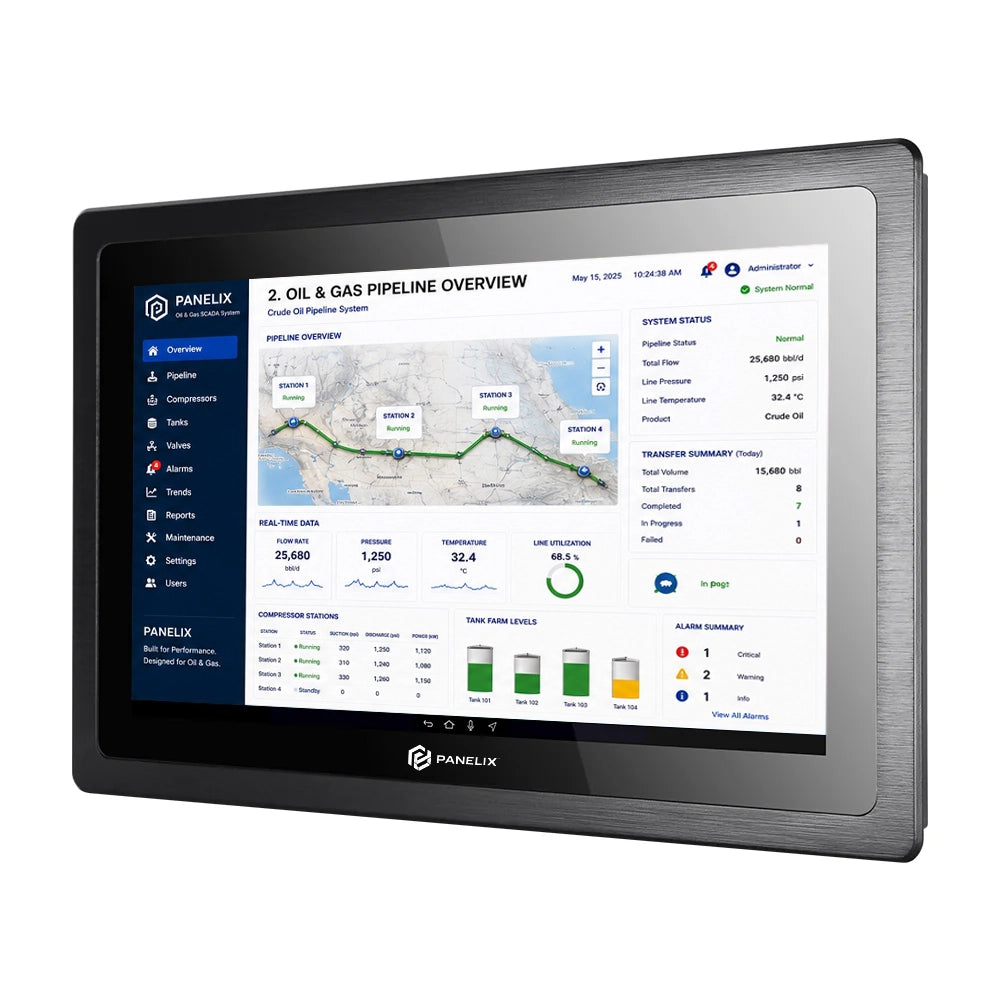

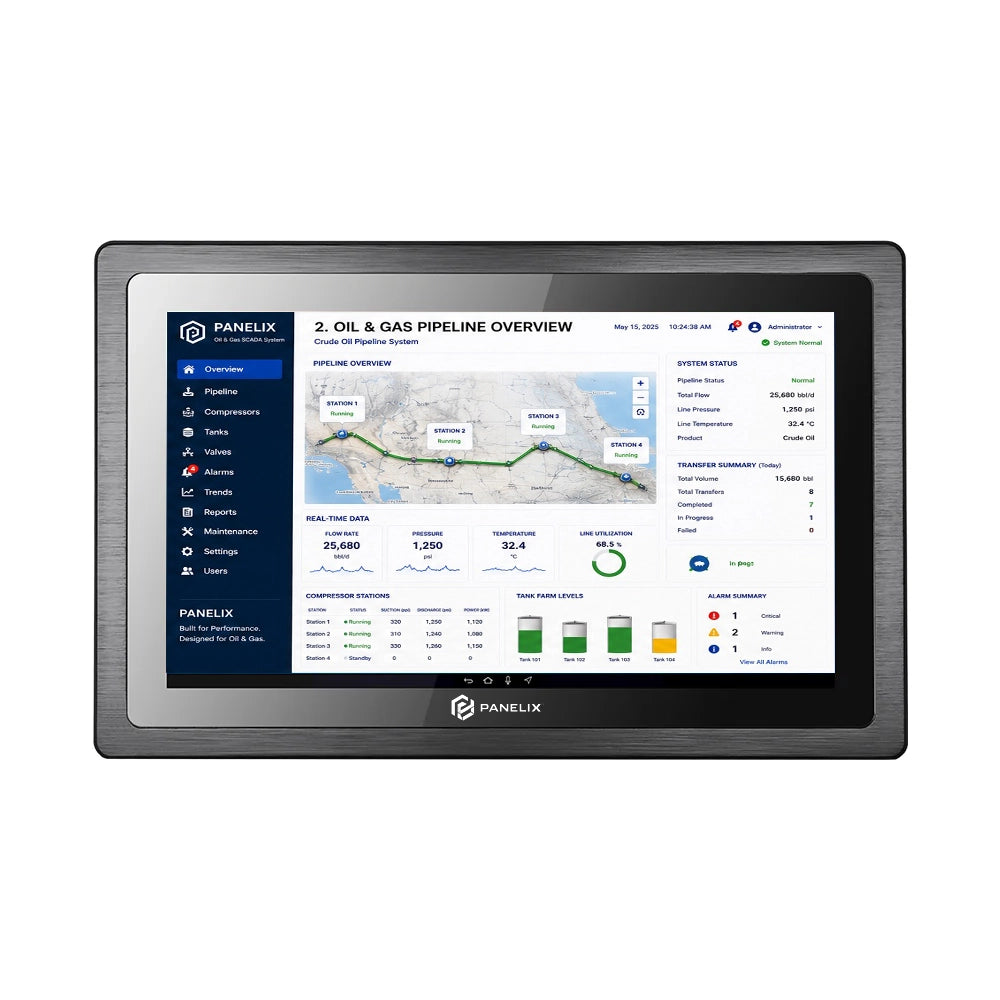

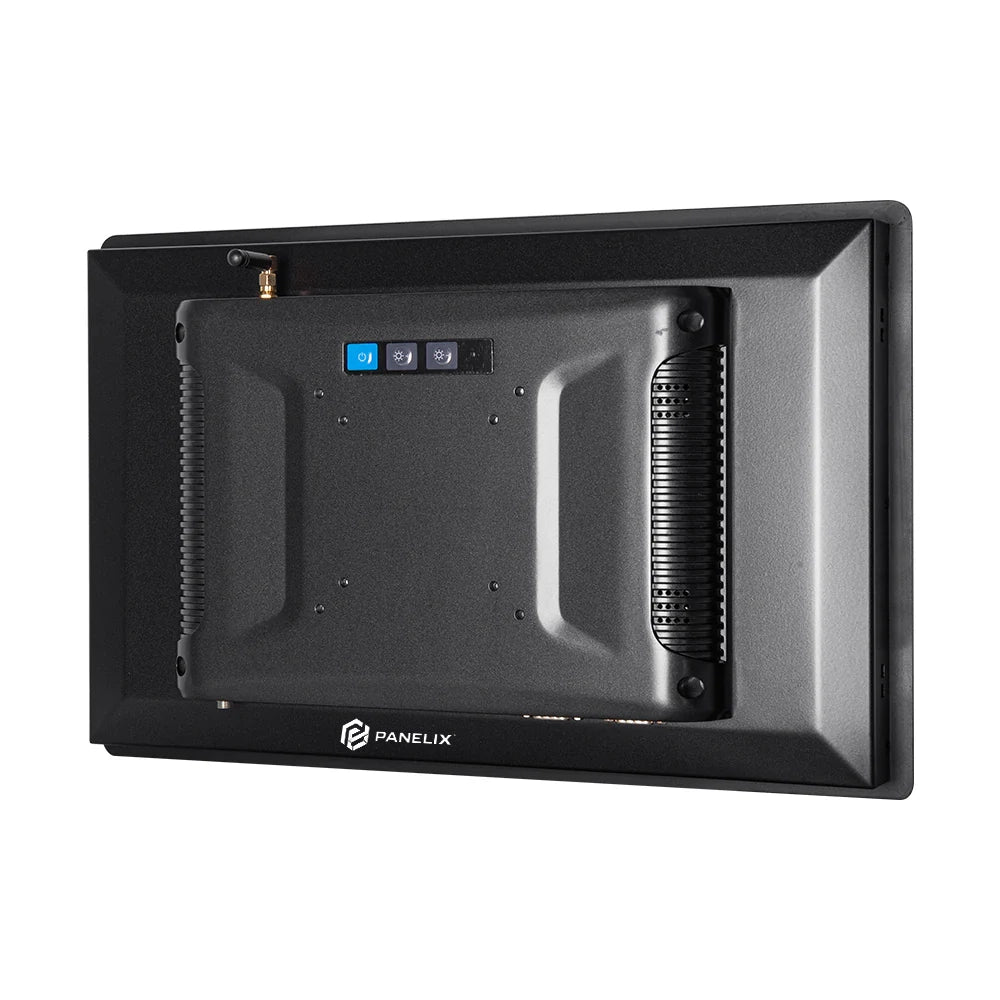

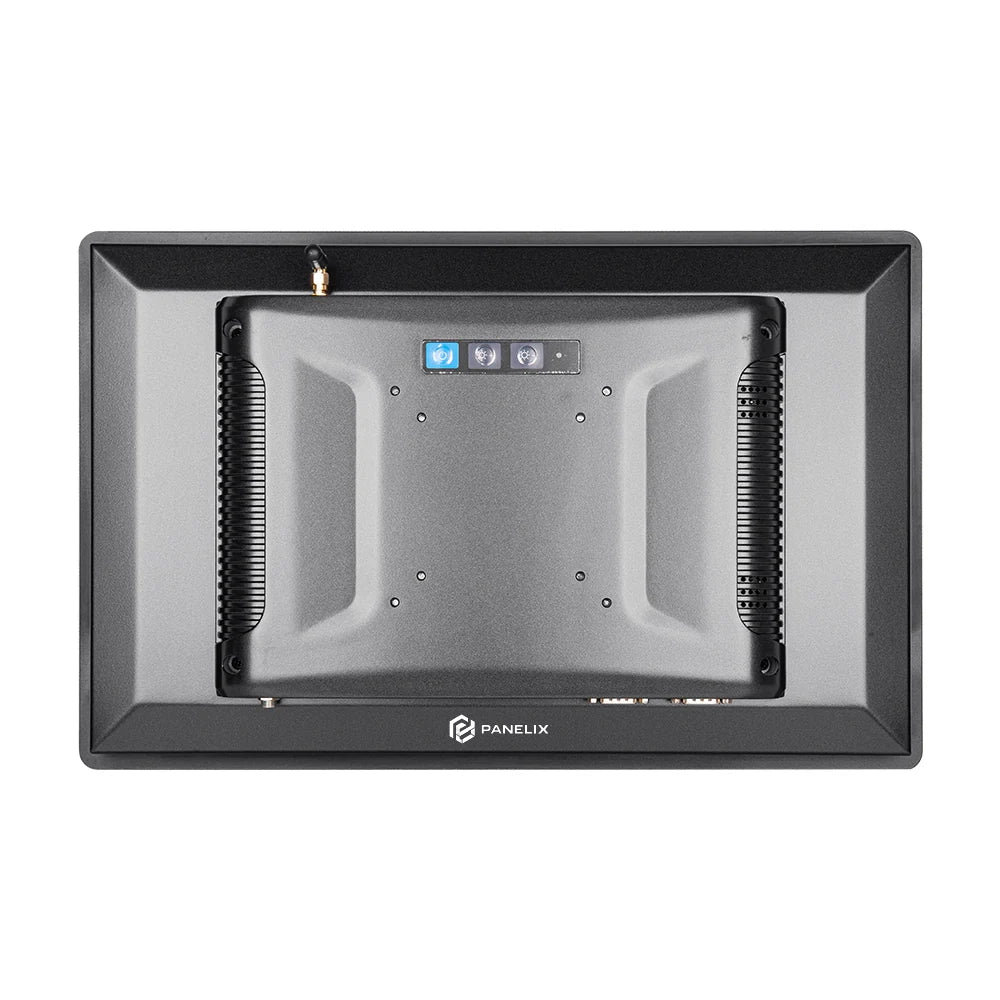

Panelix Rugged 15

Panelix Rugged 15

15" Intel i5-8265U resistive panel PC

SKU: PX-150R-i5-8265U-RES
Resistive Touch

Resistive Touch

Windows / Intel Panel PC

Windows / Intel Panel PC

Request Quote Download Datasheet

Product Specifications

Screen Parameter

Display Type

15" TFT LCD Screen

MAX Resolution

1024 x 768 (4:3）

Viewing Angle(H/V)

89/89/89/89 (L/R/U/D)

Luminance (cd/m²)

300 cd/m²

Contrast Ratio

1000:1

Configuration

CPU

I5-6200U, I5-7200U, I5-8265U, I5-10210U

CPU Frequency

2.3GHz, 2.5GHz, 1.6GHz

Integrated Graphics

Intel Iris Graphics 520, Intel HD Graphics 620, Intel UHD Graphics 620

Memory/RAM

4GB DDR4(Optional 8GB/16GB/32GB), 4GB DDR4(Optional 8GB/16GB/32GB/64GB), 8GB DDR4(Optional 16GB/32GB/64GB)

Storage

128GB SSD (Optional 256GB~512GB/1T~4T SSD, 1T/2T HDD)

Wi-Fi

Dual Band 2.4GHz+5GHz

Bluetooth

BT4.0

Operating System

Win7 / 10 / 11, Ubuntu / CentOS / Redhat / Debian / Linux

Watchdog Timer

Support

RTC real-time clock

Support

Timer Switch

Support

Physical Characteristic

Overall Dimensions

W379 x H298.5 x D65mm

Installation Size

W363 x H283mm

Color

Black, optional silver

Installation

Supports panel mount, wall - embedded, wall - mounted, desktop, folding mount, VESA mount, suspended mount, etc.

Power Parameter

Power Input

DC 12V - 36V

Power Adapter

6200U / 7200U: 24V / 2.5A, 8265U / 10210U: 24V / 4A

Interface Parameter

Power SW

1 x Power SW

Power Interface

1 x Threaded DC port (Diameter: 5.5 x 2.5mm)

Phoenix Terminal

1 x 6P Phoenix terminal (1 x 232 with power supply + 1 x DC)

USB

2 x USB2.0, 2 x USB3.0

Ethernet

2 x LAN, 10 / 100 / 1000 Mbps Adaptive Ethernet, 3G / 4G customized

HDMI

1 x HDMI output, up to 4K

SIM

1 x SIM card slot (should be work with 3G / 4G module)

VGA

1 x VGA

Audio

1 x Audio Out, support audio output

Wi-Fi Antenna

2 x Wi - Fi antenna

Serial Port

2 x COM (The default is RS232, optional RS485 / RS422)

Speaker

2 x (8Ω2W)

Grounding

1 x GND

Reliability Parameter

Operating Temperature

- 10°C ~ 60°C (-20°C ~ 70°C can be customized)

Storage Temperature

- 20°C ~ 70°C

Relative Humidity

95% non - condensing

Target Industries

  • Manufacturing
    Manufacturing
  • Warehousing
    Warehousing
  • Logistics
    Logistics
  • Food Processing
    Food Processing
  • Packaging
    Packaging

Where To Use

Production lines, warehouse operations, food processing, packaging, supervisory stations.

How It Is Used

Use as a Windows touchscreen workstation for industrial software and daily operations.
